规格图
HEYCO电缆固定头直通式PG系列
2020-11-05
‧ 材质：主体螺母为尼龙66，密封垫圈为TPE
‧ 阻燃等级：UL94V-2
‧ 认证：UL注册编号E51579，CSA认证编号93876C，VDE认证编号#13668
‧ 防水等级：IP68（70psi，5bar）
‧ 工作温度：静态-40℃到115℃，动态-20℃到100℃
较高的防水等级。
经过认证，可用于NEMA 6和6P工况。
梯形螺纹可防止安装时跳牙并且实现快速安装。
所有接头均采用尼龙本体，密封垫圈采用热塑性弹性体材料
耐盐水、弱酸、汽油、酒精、油脂等普通溶剂的腐蚀

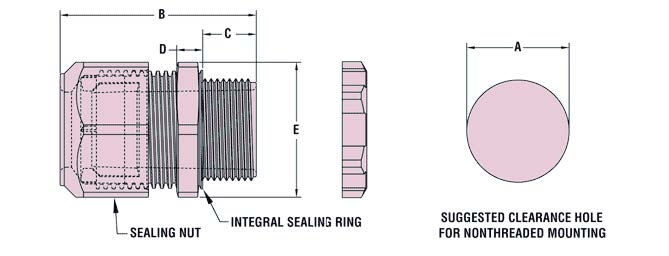

规格表
| Part Number 料号 | Cable Dia. Range 线径范围 | Description 型号 | Part Dimensions 零件尺寸 | ||||||
| Black 黑色 | Grey 浅灰色 | Min 最小 | Max 最大 | A | B | C | D | E | |
| M3444 | M3445 | 1.7 | 5.6 | RLTCG 7 | 12.5 | 29.5 | 8.1 | 5.3 | 16 |
| M3207 | M3208 | 2.9 | 6.4 | LTCG 7 | 12.5 | 29.5 | 8.1 | 5.3 | 16 |
| M3446 | M3447 | 1.7 | 4.7 | RLTCG 9 | 15.2 | 31.8 | 8.1 | 5.3 | 21 |
| M3210 | M3211 | 2.7 | 7.9 | LTCG 9 | 15.2 | 31.8 | 8.1 | 5.3 | 21 |
| M3448 | M3449 | 1.8 | 6.6 | RLTCG 11 | 18.6 | 37.6 | 9.7 | 5.3 | 23.9 |
| M3213 | M3214 | 5.8 | 10 | LTCG 11 | 18.6 | 37.6 | 9.7 | 5.3 | 23.9 |
| M4500 | M4501 | 2.4 | 6.6 | RLTCG 13.5 | 20.4 | 38.1 | 10.4 | 5.3 | 24.9 |
| M3216 | M3217 | 4.3 | 11.4 | LTCG 13.5 | 20.4 | 38.1 | 10.4 | 5.3 | 24.9 |
| M4502 | M4503 | 4.6 | 11.2 | RLTCG 16 | 22.5 | 42.7 | 11.2 | 6.4 | 26.9 |
| M3219 | M3220 | 5.8 | 13.9 | LTCG 16 | 22.5 | 42.7 | 11.2 | 6.4 | 26.9 |
| M3454ST | M3455ST | 6.4 | 12.3 | RLTCG 21 ST | 28.3 | 45.7 | 10.9 | 6.4 | 33 |
| M3222ST | M3223ST | 12.3 | 18 | LTCG 21 ST | 28.3 | 45.7 | 10.9 | 6.4 | 33 |
| M3454 | M3455 | 6.4 | 12.3 | RLTCG 21 | 28.3 | 48 | 13.2 | 6.4 | 33 |
| M3222 | M3223 | 12.3 | 18 | LTCG 21 | 28.3 | 48 | 13.2 | 6.4 | 33 |
| M4504 | M4505 | 12.4 | 20 | RLTCG 29 | 37.7 | 56.6 | 14.7 | 7.6 | 43.9 |
| M3225 | M3226 | 15 | 25.4 | LTCG 29 | 37.7 | 56.6 | 14.7 | 7.6 | 43.9 |
| M3206 | M3205 | 20 | 25.9 | RLTCG 36 | 47.6 | 69.1 | 11.9 | 7.6 | 52.1 |
| M3204 | M3203 | 22 | 32 | LTCG 36 | 47.6 | 69.1 | 11.9 | 7.6 | 52.1 |
| M3218 | M3215 | 25.4 | 31.5 | RLTCG 42 | 54.1 | 63.5 | 11.4 | 9.1 | 63 |
| M3212 | M3209 | 31.2 | 38.1 | LTCG 42 | 54.1 | 63.5 | 11.4 | 9.1 | 63 |
| M3283 | M3284 | 29.5 | 34.3 | RLTCG 48 | 59.4 | 66.7 | 12.4 | 10.7 | 69.9 |
| M3281 | M3282 | 36.8 | 44 | LTCG 48 | 59.4 | 66.7 | 12.4 | 10.7 | 69.9 |
