规格图

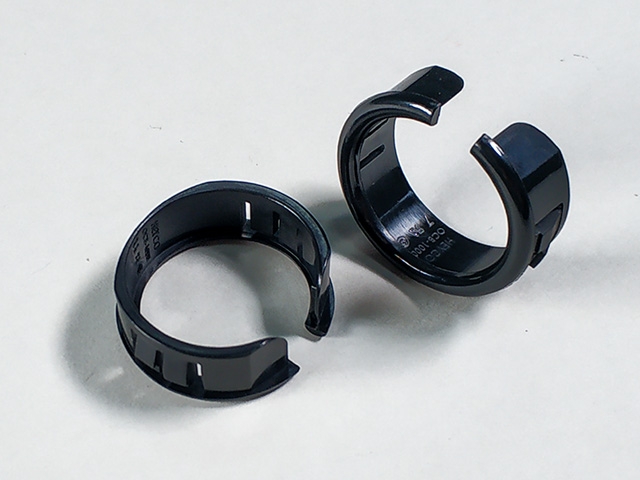

HEYCO开合式护线环
2020-11-05
‧ 材料：尼龙66
‧ 阻燃等级：UL94V-2
‧ 认证：UL认证编号E15331，CSA认证编号LR-8919
‧ 工作温度：-18℃到105℃
用手按压即可实现简单快捷安装。
开口式护线环可以被装配在直径大于其内径的电缆线束上。
可以装入已经穿线或管的安装孔内。

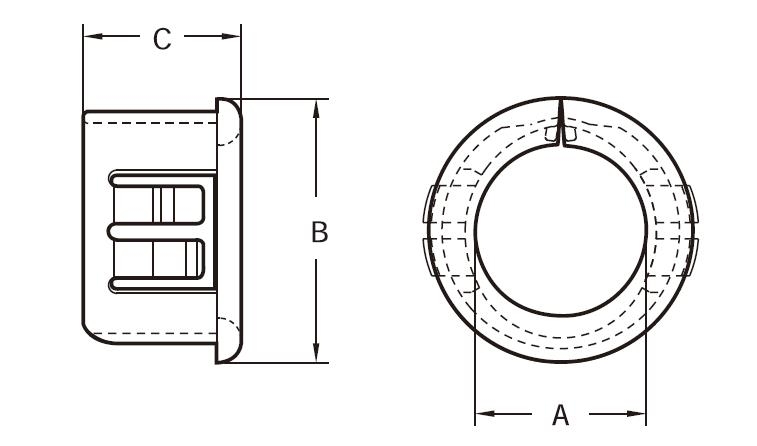

规格表
| Part Number 料号 | Description 型号 | Chassis Dimensions 面板尺寸 | Part Dimensions 零件尺寸 | |||
| Mounting Hole Dia. 安装孔径 | Max. Thickness 最大面板厚度 | A Inside Diameter 内径 | B Head Diameter 头部直径 | C Overall Height 总高度 | ||
| 2934 | SOCB 07M | 7 | 1.6 | 5.6 | 8.9 | 6 |
| 2865 | OCB 375 | 9.5 | 3.2 | 6.7 | 10.7 | 9.9 |
| 2867 | OCB 437 | 11.1 | 3.2 | 8.4 | 12.3 | 10.3 |
| 2871 | OCB 500 | 12.7 | 3.2 | 7.9 | 14.3 | 10.3 |
| 2938 | SOCB 13M | 13 | 1.6 | 9.7 | 14.2 | 6.4 |
| 2875 | OCB 512 | 13 | 3.2 | 9 | 14.9 | 10.3 |
| 2869 | OCB 562 | 14.3 | 3.2 | 9.9 | 16.3 | 10.3 |
| 2872 | OCB 625 | 15.9 | 3.2 | 11.5 | 17.5 | 10.3 |
| 2941 | SOCB 16M | 16 | 1.6 | 13.2 | 18 | 6.4 |
| 2914 | OCB 650 | 16.5 | 3.2 | 12.3 | 18.6 | 10.3 |
| 2943 | SOCB 19M | 19 | 1.6 | 16 | 21.1 | 6.4 |
| 2873 | OCB 750 | 19.1 | 3.2 | 13.9 | 20.2 | 10.3 |
| 2945 | SOCB 22M | 22 | 1.6 | 19.1 | 24.9 | 6.4 |
| 2917 | OCB 866 | 22 | 3.2 | 17.3 | 24.8 | 10.3 |
| 2874 | OCB 875 | 22.2 | 3.2 | 17 | 23.4 | 10.3 |
| 2947 | SOCB 24M | 24 | 1.6 | 20.8 | 26.9 | 6.4 |
| 2920 | OCB 984 | 25 | 3.2 | 20.4 | 26.4 | 10.3 |
| 2878 | OCB 1000 | 25.4 | 3.2 | 20.6 | 26.6 | 10.3 |
| 2950 | SOCB 27M | 27 | 1.6 | 24.8 | 28.7 | 6.5 |
| 2879 | OCB 1093 | 27.8 | 3.2 | 22.2 | 29.4 | 10.3 |
| 2881 | OCB 1250 | 31.8 | 3.2 | 26.6 | 34.1 | 10.3 |
| 2882 | OCB 1375 | 34.9 | 3.2 | 29.7 | 37.3 | 10.3 |
| 2883 | OCB 1500 | 38.1 | 3.2 | 31.7 | 40.1 | 10.7 |
| 2900 | OCB 2000 | 50.8 | 3.2 | 43.9 | 53.9 | 10.7 |
| 2909 | OCB 2.5 | 63.5 | 6.4 | 50.8 | 66 | 18.3 |
