规格图

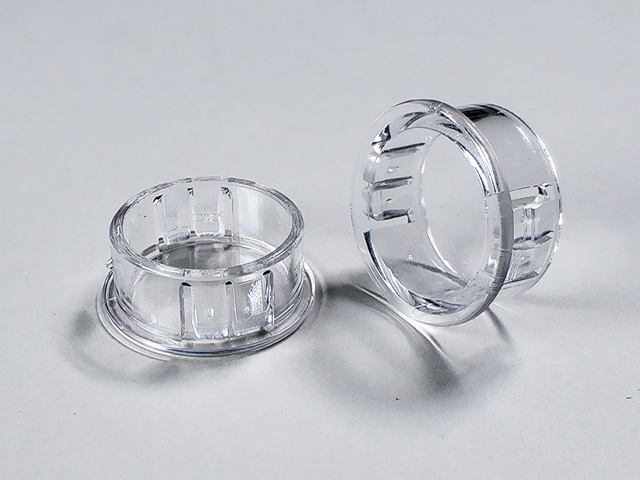

HEYCO透明孔塞
2020-11-05
‧ 材质：聚碳酸酯PC
‧ 阻燃等级：UL94V-2
‧ 工作温度：-40℃到105℃
‧ 认证：UL认证编号E51579，CSA认证编号LR-8919
颜色可定制（需要一定的订购量）。
高清晰的透明光泽质感。
用手指按压即可快捷简易的进行安装。
规格表
| Part Number 料号 | Description 型号 | Chassis Dimensions 面板尺寸 | Part Dimensions 零件尺寸 | ||
| Mounting Hole 安装孔径 | Max. Thickness 最大厚度 | A | B | ||
| 1300 | WP 187 | 4.8 | 1.6 | 6.4 | 4.9 |
| 1301 | WP 250 | 6.4 | 1.6 | 7.9 | 7.9 |
| 1302 | WP 312 | 7.9 | 1.6 | 9.5 | 7.9 |
| 1303 | WP 375 | 9.5 | 3.2 | 11.9 | 10.3 |
| 1304 | WP 437 | 11.1 | 3.2 | 13.5 | 10.3 |
| 1305 | WP 500 | 12.7 | 3.2 | 14.3 | 10.3 |
| 1307 | WP 625 | 15.9 | 3.2 | 18.2 | 10.3 |
| 1309 | WP 750 | 19.1 | 3.2 | 21.8 | 10.3 |
| 1311 | WP 875 | 22.2 | 3.2 | 24.2 | 11.5 |
| 1312 | WP 1000 | 25.4 | 3.2 | 28.6 | 11.5 |
| 1313 | WP 1093 | 27.8 - 28.6 | 3.2 | 30.9 | 11.5 |
| 1314 | WP 1375 | 34.9 | 3.2 | 37.2 | 11.5 |
| 1316 | WP 1500 | 38.1 | 3.2 | 40.8 | 11.5 |
| 1318 | WP 1750 | 44.4 | 3.2 | 47.6 | 11.5 |
| 1319 | WP 2000 | 50.8 | 3.2 | 54.8 | 11.5 |
